Four heads canning system

inquire now

Product Detiles

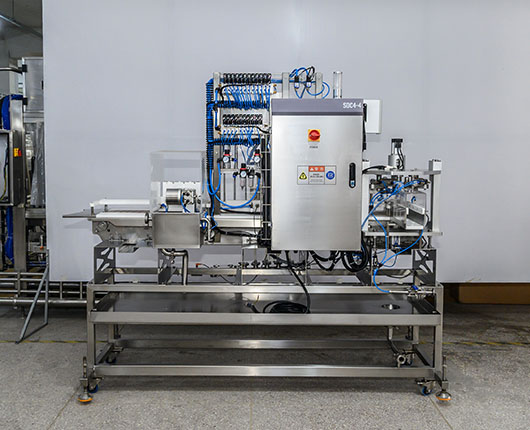

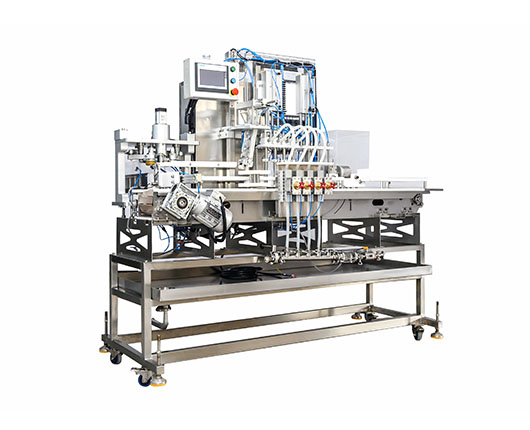

Equipment detailsSDC4-4 BEER CANNING  SYSTEM
1Size:W*L*H
Can Filling System
2.00×0.91×1.85M
2Size:W*L*H
Flip-Rinse Part
0.5×0.4×0.5M
3Size:W*L*H

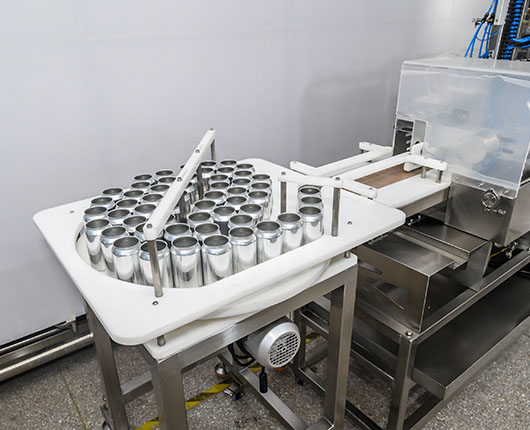

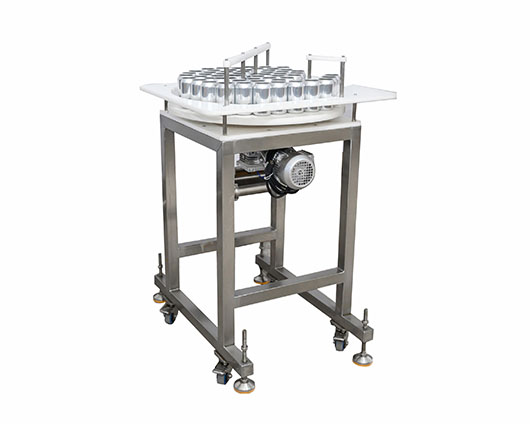

Rotary Infeed Table
0.9×0.9×1.25M
4Total Size:W*L*H2.9×0.91×1.85M
5Total Weight337KG
6Packing Size (L*W*H)3.20×1.15×2.05M
7Gross Weight540KG
8Capacity1200-1500pcs/H(330ml) 396-495L/H
1000-1200pcs/H(500ml) 500-600L/H
9PowerAccording to user local power (3 Phases 380V 50Hz )
10Power port3P+N+G
11Power consumption2.0-3.5KW
12Main MaterialSUS304
13Beer Source Pressure0.15-0.2Mpa (22-30PSI)  1.5" Tir-clamp
14Compressed Air0.50-0.70Mpa (75.0-105PSI) OD:Ф10mm
15Jacking Cylinder Regulator0.20-0.30Mpa (30-45PSI)
16CO2 Regulator0.15-0.2Mpa (22-30PSI) OD:Ф10mm
17Flip-Rinse Sanitizer0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp
18Exit-Rinse Water0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp
19Time setting waySiemens PLC 200 smart
20beer can type300ml use in china in default (Sample offer by customer)
21Filling Part With Flowmeter Or NotYesIFM
Germany
No
22Wheels or feetFeet
wheels
23Working procedurePut can→constantly convey→ Santizing flip-rinse→CO2 purge→ Beer Filling→Cover lips→Seamer→Exit rinse
24PackageComposite board boxes
25Lead time40-45 days
