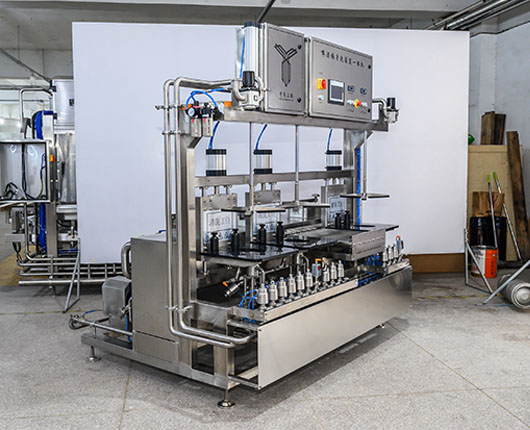

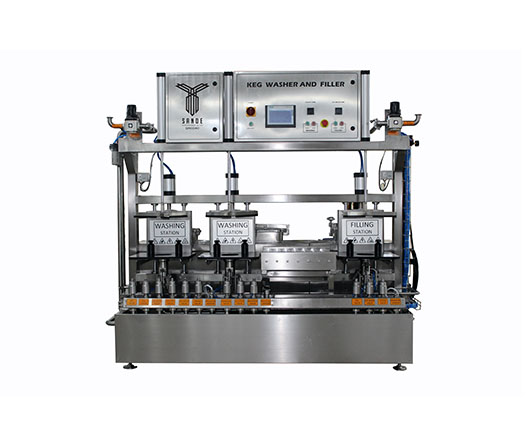

| Equipment details | CFA3-33S(E)-T-H-1-1M-L BEER KEG WASHER AND FILLER | ||||
| 1 | Size:W*L*H | 1.80X2.30X2.08M | |||
| 2 | Weight | 680KG | |||
| 3 | with slide or not | （No) | Yes | ||
| 4 | Packing Size （L*W*H) | 2.33X2.05X2.30M | |||
| 5 | Gross Weight | 1019KG | |||
| 6 | Capacity | Washing part: | 40-50pcs/h | Filling part： | 40-50pcs/h |
| 7 | Power | According to user local power (3 Phases 380V 50Hz) | |||
| 8 | Power port | 3P+N+G | |||
| 9 | Heater way | Steam Coiler | Electrical Heater | ||
| 10 | Power consumption | 3.0KW | 15.0KW | ||
| 11 | Main Material | SUS304 | |||
| 12 | Water tank material and volume | SUS304 Single tank / Volume=100L （3pcs） | |||
| 13 | Motor type and brand | SUS304 Pump Head | |||
| 14 | Temperature prode | NTC | |||
| 15 | Temperature control mode | STC-200 | |||
| 16 | Time setting way | Siemens PLC 200 smart | |||
| 17 | Connect type | water inlet and drain outlet | 1.5" Tri-clamp | Steam inlet | DIN male fitting |
| 18 | Spear type | A | S | D | G |
| 19 | Keg type | EURO DIN AMERICAN 20L-60Lkeg | |||
| 20 | Filling measurement type | Flow Switch | Flow Meter | ||
| 21 | Washing part inlet with pressure detection or not | Yes | No | ||
| 22 | The table can rise or not | Yes | No | ||
| 23 | Washing part outlet with the residual liquid detection or not | Yes | No | ||
| 24 | Washing working procedure | Lock down →Rinse water washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 1 washing → air purge/drain off →hot water 2 washing →steam purge/to rinse water tank→steam sterilized → steam keep pressure sterilized→CO2 purge/drain off→CO2 fill Lock down→ air purge/drain off → hot water 1 washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 2 washing → air purge/drain off →acid washing → air purge/to acid tank→hot water 3 washing →steam purge/drain off →steam sterilized → steam keep pressure sterilized→CO2 purge/drain off→CO2 fill | |||
| 25 | Filling working procedure | Lock down→ sterilize → CO2 purge→ spear open → CO2 fill→ filling→ spear close→ hot water washing spear→CO2 purge/drain off →Stop | |||
| 26 | Package | Composite board boxes | |||
| 27 | Lead time | 40-45 days | |||
