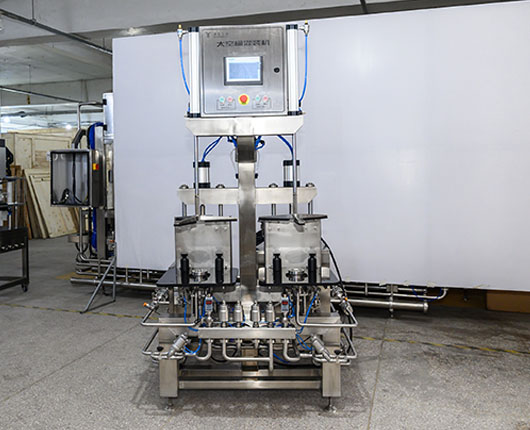

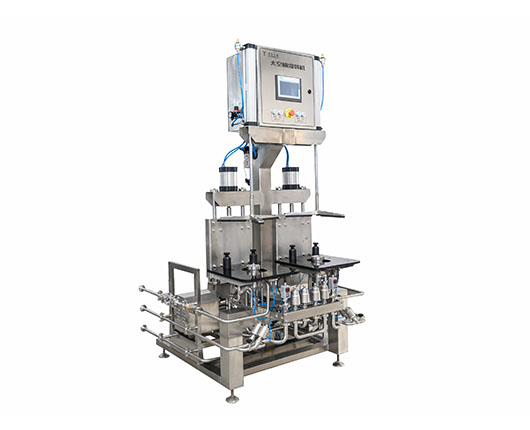

| Equipment details | F2-11N-T-H-1M-L BEER KEG FILLER | ||||
| 1 | Size:W*L*H | 1.20X1.41X2.13M | |||
| 2 | Weight | 298KG | |||
| 3 | Packing Size （L*W*H) | 1.35X1.66X2.35M | |||
| 4 | Gross Weight | 440KG | |||
| 5 | Capacity | 50-60pcs/h | |||
| 6 | Power | According to user local power (3 Phases 380V 50Hz) | |||
| 7 | Power port | 3P+N+G | |||
| 8 | Power consumption | 1.0KW | |||
| 9 | Main Material | SUS304 | |||
| 10 | Water tank material and volume | SUS304 Single tank / Volume=135L （1pcs） | |||
| 11 | Motor type and brand | SUS304 Pump Head | |||
| 12 | Temperature prode | NTC | |||
| 13 | Temperature control mode | STC-200 | |||
| 14 | Time setting way | Siemens PLC 200 smart | |||
| 15 | Connect type | 1.5" Tri-clamp | DIN male fitting | ||
| 16 | Spear type | Talos keg... | |||
| 17 | Keg type | 20L-30L keg | |||
| 18 | Filling measurement type | Flow Switch | Flow Meter | ||
| 19 | The table can rise or not | Yes | No | ||
| 20 | Filling working procedure | Start-Lock down-Sanitizer cleaning spear (drainage valve open)-Drain off artesian 2S-CO2 purge-Open spear-Fill the inside of the inner bag with CO2(1S)-Fill the outside of the inner bag with CO2 (exhaust the gas in the inner bag)-Filling-The difference of 0.2L reaches the set value(Drain valve open full exhaust)-The inner bag of the keg is full (the meter measures to the set value)-Close spear-Sanitizer cleaning spear -Drain off artesian 2S-CO2 purge-Stop | |||
| 21 | Package | Composite board boxes | |||
| 22 | Lead time | 30-35 days | |||
