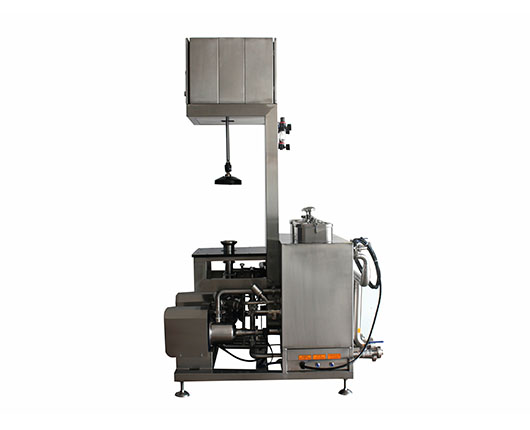

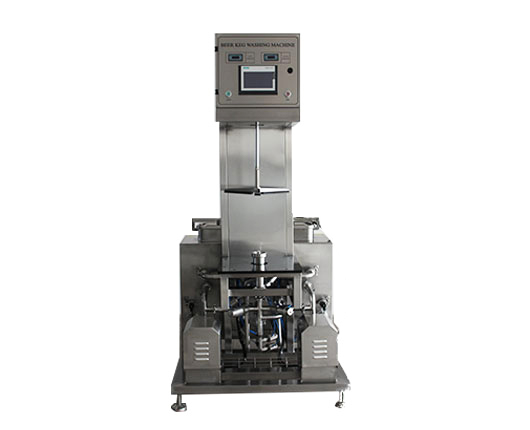

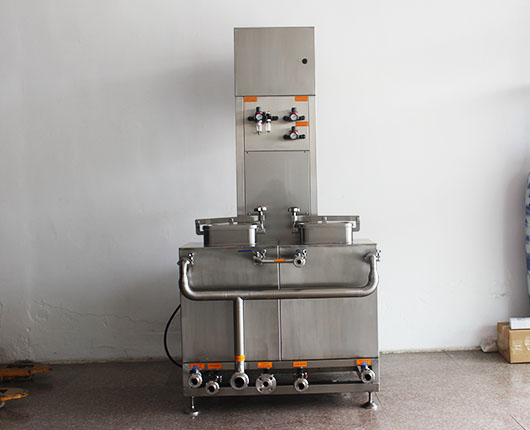

| Equipment details | CA1-22S(E)-T-H-1 BEER KEG WASHER | CA1-33S(E)-T-H-1 BEER KEG WASHER | |||||||
| 1 | Size:W*L*H | 1.20X1.05X2.03M | 1.40X1.60X2.04M | ||||||
| 2 | Weight | 238KG | 264KG | ||||||
| 3 | with slide or not | No | Yes | No | Yes | ||||
| 4 | Packing Size （L*W*H) | 1.35X1.16X2.25M | 1.50X1.75X2.28M | ||||||
| 5 | Gross Weight | 369KG | 414KG | ||||||
| 6 | Capacity | 20-30pcs/h | Washing part: | 20-30pcs/h | |||||
| 7 | Power | According to user local power (3 Phases 380V 50Hz) | According to user local power (3 Phases 380V 50Hz) | ||||||
| 8 | Power port | 3P+N+G | 3P+N+G | ||||||
| 9 | Heater way | Steam Coiler | Electrical Heater | 蒸汽盘管（Steam Coiler） | 电加热（Electrical Heater） | ||||
| 10 | Power consumption | 2.0KW | 14.0KW | 3KW | 15KW | ||||
| 11 | Main Material | SUS304 | SUS304 | ||||||
| 12 | Water tank material and volume | SUS304 Single tank / Volume=100L （2pcs） | SUS304 Single tank / Volume=100L （3pcs） | ||||||
| 13 | Motor type and brand | SUS304 Pump Head | SUS304 Pump Head | ||||||
| 14 | Temperature prode | NTC | NTC | ||||||
| 15 | Temperature control mode | STC-200 | STC-200 | ||||||
| 16 | Time setting way | Siemens PLC 200 Smart | Siemens PLC 200 Smart | ||||||
| 17 | Connect type | water inlet and drain outlet | 1.5" Tri-clamp | Steam inlet | DIN male fitting | water inlet and drain outlet | 1.5" Tri-clamp | Steam inlet | DIN male fitting |
| 18 | Spear type | A | S | D | G | A | S | D | G |
| 19 | Keg type | EURO DIN AMERICAN 20L-60Lkeg | EURO DIN AMERICAN 20L-60Lkeg | ||||||
| 20 | Washing part inlet with pressure detection or not | Yes | No | Yes | No | ||||
| 21 | Washing part outlet with the residual liquid detection or not | Yes | No | Yes | No | ||||
| 22 | Washing working procedure | Lock down → air purge/drain off → hot water washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 1 washing → air purge/drain off → hot water 2 washing →steam drain hot water→steam sterilized → steam keep pressure sterilized→CO2 purge/drain off→CO2 fill | Lock down→ air purge/drain off → hot water 1 washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 2 washing → air purge/drain off →sanitizer sterilize → CO2 purge/to sanitizer tank→hot water 3 washing →CO2 purge/drain off→CO2 fill Lock down→ air purge/drain off → hot water 1 washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 2 washing → air purge/drain off →acid washing → air purge/to acid tank→hot water 3 washing →steam purge/drain off →steam sterilized → steam keep pressure sterilized→CO2 purge/drain off→CO2 fill | ||||||
| 23 | Package | Composite board boxes | Composite board boxes | ||||||
| 24 | Lead time | 30-40 days | 40-45 days | ||||||
